Starwar-Case

$25.00

【Intelligent Controlling System 】This Housing Case of Raspberry Pi 4 build-in an intelligent power control MCU board for managing power switch, PWM cooling Fan and GPIO pins. Included an HDMI&Audio converter board to extend HDMI& Audio ports to the back.

【Super Heat Dissipation】The cover of case is made by aluminum alloy as passive heatsink to effectively transfer the heat from Raspberry Pi 4 CPU to the heatsink and dissipated by a software controllable 30mm PWM Fan.

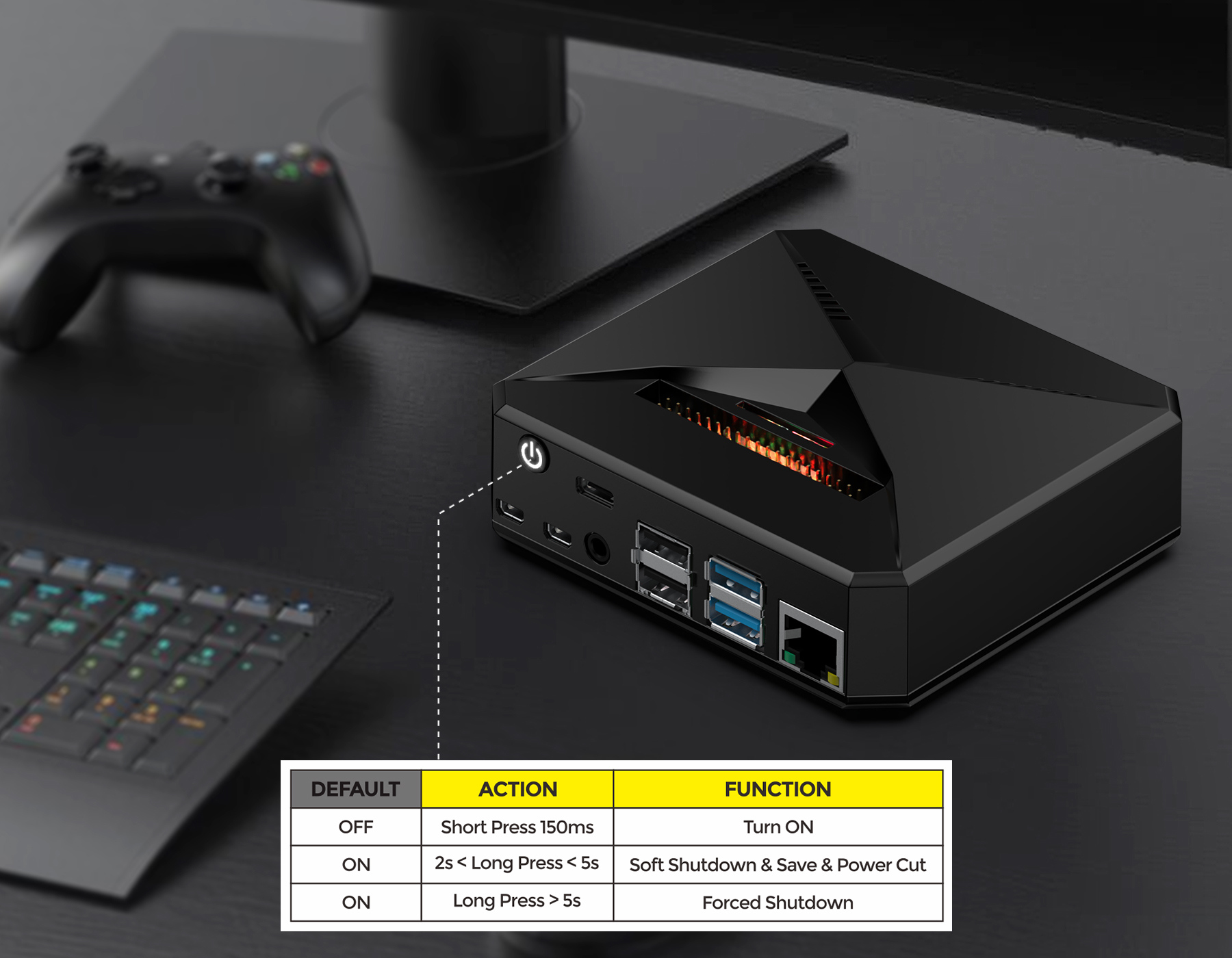

【Easy Script Installation】Only few steps to install the Power and Fan control script, the LED power button can perform a safe shutdown, reboot or forced shutdown. The speed of fan can be programmed with 50 steps, Max-speed 6000rpm.

【Stable and Quite】The 30mm PWM Fan deliver low-noise and no vibration, automatic speed adjust and ultra-quiet operation for extreme Raspberry Pi 4 cooling performance, the MCU board operates stably and reliably to keep all parts functional.

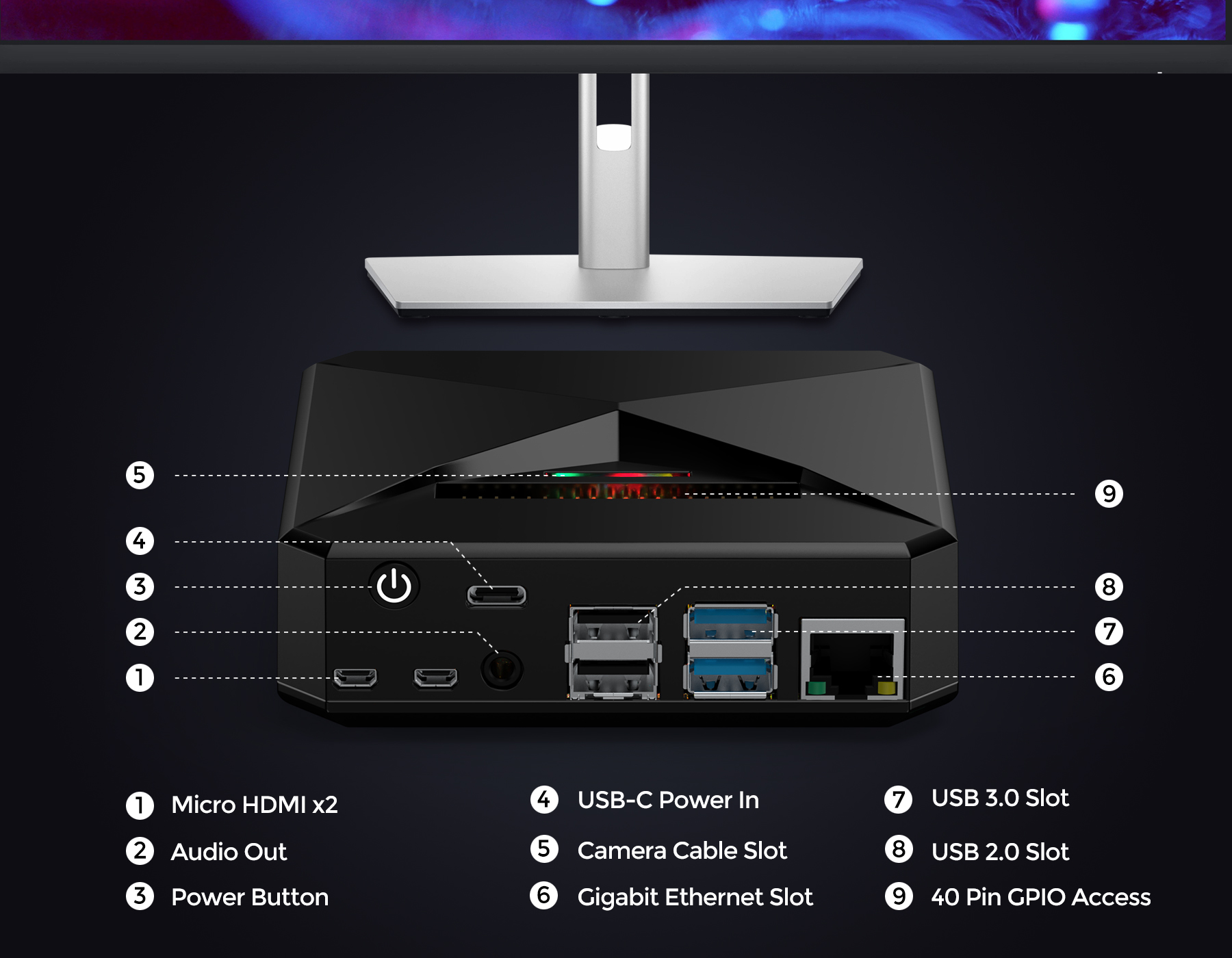

【Effective Management】All ports are effectively managed that can easily accessing and turning the Pi4 Case to a mini computer.

x
Compare
Category:

Description

封面2
Play Video

How to install PWR and FAN control script?

Step1: Install python3-pip if your OS did not included. Enter sudo apt-get install python3-pip

Then, Install python smbus lib:  Enter sudo pip3 install smbus2

Step2: Setup Raspberry Pi 2 i2c interface, there are 3 ways.

1, Enter sudo nano /boot/config.txt, add dtparam=i2c_arm=on to the last column.

Ctrl + X to save and quit, then sudo reboot

2, Enter sudo raspi-config to open the configuration tool, select Interface Options.

Select I2C and Enable it, <Yes> – <OK> – <Finish>

Then sudo reboot

3, Turn it on from Raspberry Pi Configuration. then sudo reboot

Step3: Download file “starwar-case.git”. Enter git clone https://github.com/pibiger-tech/starwar-case.git

Enter cd starwar-case to the directory

Step4: Enter sudo tar -xvf pi-case-setup-python3.tar.gz to unzip pi-case-setup-python3.tar.gz

Enter cd pi-case-setup to the directory

Enter sudo chmod -R a+rwx * to get execute permissions

Enter sudo ./setup.sh to run the script

Step5: Enter sudo reboot to reboot the Raspberry pi and the starwar-case will works perfectly
